Description

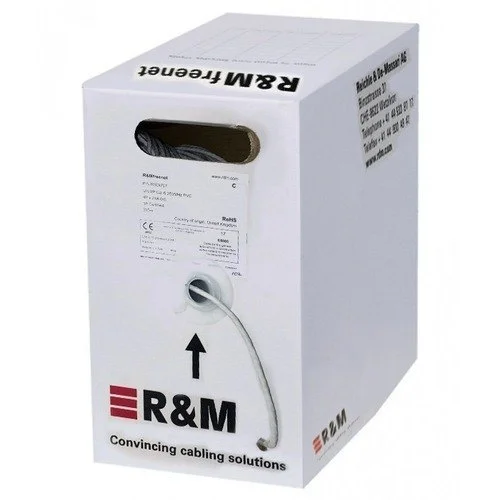

R&M Cat 6 U/UTP Cable Box

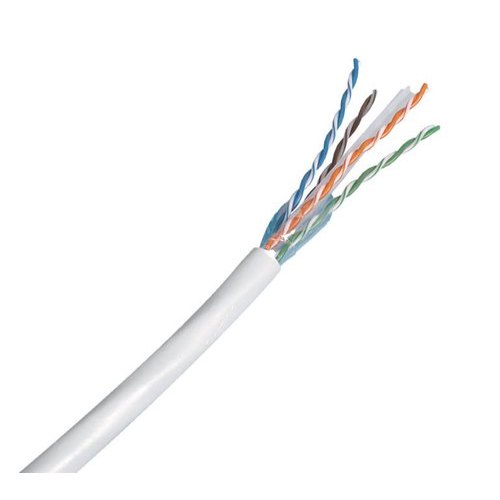

The R&M Cat 6 U/UTP Cable Box delivers top-notch performance for your networking needs. It features a bare solid copper conductor with an HDPE insulation and an overall diameter of Ø 0.92±0.02 mm. The cable’s structure includes twisted pairs and a cross separator, enclosed in a durable PVC sheath, colored gray (RAL 7035), with a nominal sheath thickness of 0.50mm.
[ez-toc]
Key Specifications
- Conductor: Bare solid copper
- Insulation: HDPE
- Diameter: Overall Ø 0.92±0.02 mm
- Twisting: 2 wires per pair, 4 pairs to the core
- Sheath Material: PVC, gray RAL 7035
- Sheath Thickness: 0.50mm nominal
Standards Compliance
- ISO/IEC 11801 2nd Edition
- EN 50173-1
- ANSI/TIA-568-C.2
- IEC 61156-5 2nd Edition
- IEC 61156-7
- EN 50288-6-1
Cable Designation
- Category: U/UTP Cat.6 250MHz
- Outer Diameter: 5.8±0.3mm
- Weight: 13.0kg nominal per 305m
- Pulling Pressure: 11Kg nominal
- Tensile Strength: > 16.5N/mm²
- Segregation Class: B
Installation and Operation of R&M Cat 6 UTP Cable
- Bending Radius: 25mm during operation (without load), ≥ 50mm during installation (with load)
- Temperature Range: -20°C to +60°C during operation, 0°C to +50°C during installation
Electrical Properties (at 20°C ± 5°C)
- Conductor Resistance: ≤ 9.38 Ω / 100m
- Resistance Unbalance: ≤ 2%
- Test Voltage: 1000 V DC, 1 minute, core/core
- Insulation Resistance: ≥ 5000 MΩ km; 500 V
- Capacitance: 44 pF/m max
- Capacitance Unbalance: 1500 pF/km
- Impedance: 100 ± 15 Ω at 100 MHz
- Nominal Velocity of Propagation: Approx. 69%
- Propagation Delay: ≤ 536 ns / 100m at 1 MHz
- Delay Skew: ≤ 45 ns / 100m
- Coupling Attenuation: 40 dB
Benefits of R&M Cat 6 UTP Cable
- High-Quality Construction: Ensures durability and reliable performance with solid copper conductors and HDPE insulation.
- Standard Compliance: Meets various international standards for assured quality and compatibility.
- Enhanced Performance: Provides excellent electrical properties and minimal signal interference.
- Flexible Installation: Suitable for various installation environments with its robust design and operational temperature range.
- Optimal Data Transfer: Designed for high-speed data transmission with low resistance and minimal delay.
What is the price of R&M Cat 6 Cable in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of R&M Cat 6 Cable in Bangladesh is 14,700৳. Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
