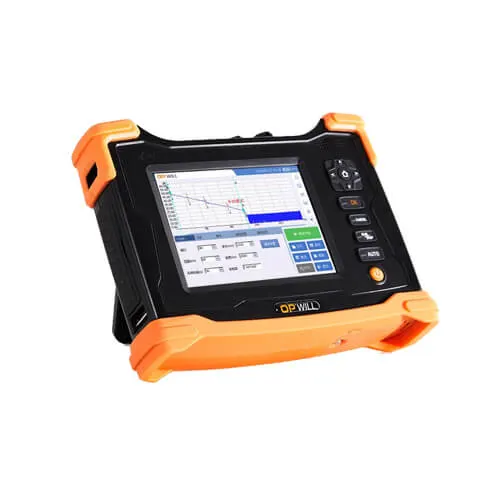

OPWILL FTS510-S OTDR Fiber Tester: Precision Redefined for Fiber Optic Networks
In the rapidly evolving landscape of fiber optic communications, precise testing and diagnostics are paramount. The OPWILL FTS510-S OTDR Fiber Tester stands out as a state-of-the-art solution, meticulously designed to meet the rigorous demands of modern fiber optic networks. Whether you’re overseeing core infrastructures, metropolitan area networks (MAN), or access networks, this device ensures unparalleled accuracy and efficiency.
[ez-toc]
Key Features and Advantages
1. Dual-Wavelength Capability
Operating at both 1310nm and 1550nm wavelengths, the FTS510-S offers versatility in testing various fiber types and lengths. This dual-wavelength functionality ensures comprehensive analysis, catering to diverse network configurations.
2. Impressive Dynamic Range
With a dynamic range spanning 30 to 45 dB, the FTS510-S can detect and analyze events over extended distances, making it ideal for both short-haul and long-haul network applications.
3. High-Resolution Sampling
The device boasts a sampling resolution ranging from 0.04 to 2 meters, coupled with up to 256,000 sampling points. This high-resolution capability facilitates the detection of minute anomalies and ensures detailed fiber characterization.
4. Minimal Dead Zones
- Event Dead Zone: ≤ 1 meter
- Attenuation Dead Zone: ≤ 3.5 meters
These minimal dead zones allow for the detection of closely spaced events, ensuring no detail goes unnoticed.
5. User-Friendly Interface
Featuring a 5.6-inch touchscreen with an Android-like GUI, the FTS510-S offers an intuitive user experience. The interface simplifies operations, reducing the learning curve for new users.
6. Comprehensive Testing Modules
The FTS510-S integrates multiple testing modules, including:
- Visual Fault Locator (VFL)
- Power Meter (Optional)
- Light Source (Optional)
- iOTA (Intelligent Optical Link Topology Analysis) (Optional)
- iNET (Intelligent Network Test Tools) (Optional)
This all-in-one approach streamlines testing processes, eliminating the need for multiple devices.
7. Robust Build for Field Operations
Designed with field technicians in mind, the FTS510-S is lightweight, rugged, and portable. Its durable construction ensures reliable performance in various environmental conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelengths | 1310 ±20 nm, 1550 ±20 nm |
| Dynamic Range | 30 to 45 dB |
| Pulse Widths | 3 ns to 20,000 ns |
| Distance Range | 0.5 km to 240 km |
| Event Dead Zone | ≤ 1 meter |
| Attenuation Dead Zone | ≤ 3.5 meters |
| Sampling Resolution | 0.04 to 2 meters |
| Sampling Points | Up to 256,000 |
| IOR Range | 1.30000 to 1.80000 |
| Linearity | ±0.05 dB/dB |
| Distance Uncertainty | ±(0.75 + 0.005% × distance + sampling resolution) meters |
| Measurement Time | 1 to 300 seconds, Real-time |
| OTDR Ports | FC/PC (Standard), SC/PC & LC/PC (Optional) |
| VFL Output Power | +10 dBm |
| Power Meter Range | +10 to -60 dBm |
| Power Meter Resolution | 0.01 dB |
| Light Source Output Power | > -4 dBm |
| Light Source Modes | CW, 270Hz, 330Hz, 1KHz, 2kHz |
| Battery Life | Up to 5 hours |
| Charging Time | < 3 hours |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Dimensions | 161(H) x 210(W) x 46(D) mm |
| Weight | Approximately 1.0 kg |
Applications
The OPWILL FTS510-S OTDR is versatile, catering to a wide range of applications:
- Backbone Network Testing: Ensures the integrity of primary data transmission routes.
- Metropolitan Area Networks (MAN): Facilitates the maintenance and troubleshooting of city-wide networks.
- Access Networks: Assists in the deployment and verification of last-mile connections.
- LAN Networks: Ideal for enterprise-level network diagnostics.
- FTTx Deployments: Supports the testing of fiber-to-the-x installations, ensuring optimal performance.
Intelligent Testing Capabilities
iOTA (Intelligent Optical Link Topology Analysis)
This optional feature allows for the intelligent combination of different pulse widths, providing comprehensive insights into fiber and splitter losses. It delivers detailed information on every element within the fiber link, enhancing diagnostic accuracy.
iNET (Intelligent Network Test Tools)
Another optional module, iNET encompasses tools like PING, Trace Route, FTP upload/download, and HTTP testing. These functionalities are crucial for Ethernet link fault checks and overall network health assessments.
Safety and Compliance
The FTS510-S adheres to international safety standards:
- Laser Safety: Compliant with IEC 60825-1: 2007: CLASS 1 and 21 CFR 1040.10
- EMC Standards: Meets EN55022/CIPSR22; EN61000-3-2; EN55024 requirements
Purchase the OPWILL FTS510-S OTDR in Bangladesh
For professionals and organizations in Bangladesh seeking a reliable OTDR solution, the OPWILL FTS510-S is available at Best Computer. As a trusted provider of cutting-edge networking equipment, Best Computer Hub ensures genuine products, competitive pricing, and exceptional customer service.
Price: ৳105,000
Warranty: 1 Year
Final Thoughts
The OPWILL FTS510-S OTDR Fiber Tester embodies precision, versatility, and user-centric design. Its comprehensive features, combined with robust construction and intelligent testing capabilities, make it an indispensable tool for fiber optic professionals. Whether you’re deploying new networks or maintaining existing infrastructures, the FTS510-S ensures that your fiber optic systems operate at peak performance.
For more information or to make a purchase, reach out to Best Computer Hub—your trusted partner in advanced networking solutions.
