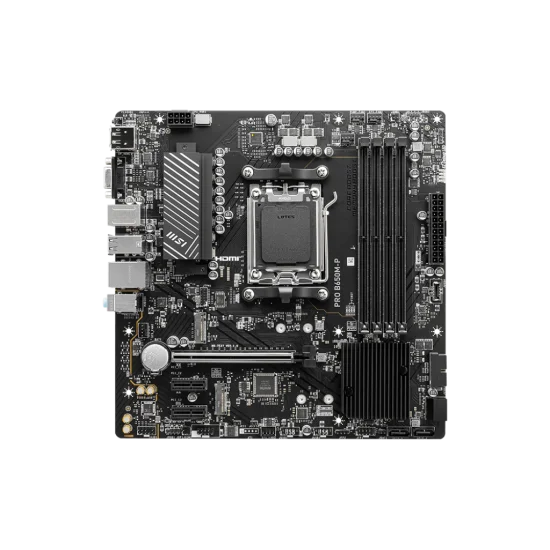

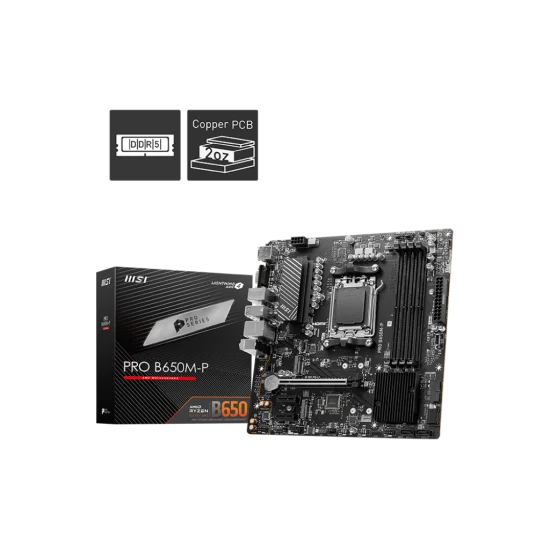

MSI PRO B650M-P AM5 Micro-ATX Motherboard

Description

MSI PRO B650M-P AM5 Micro-ATX Motherboard

The MSI PRO B650M-P AM5 Micro-ATX Motherboard is designed to set the foundation for your next high-performance business PC build. Engineered to leverage the power of AMD’s Ryzen 7000 series processors, this robust motherboard enhances system performance, making it ideal for operating multiple programs with speed and reliability.

[ez-toc]

Key Features MSI PRO B650M-P AM5 Micro-ATX Motherboard:

Processor and Memory Support

• Socket: AMD AM5, compatible with Ryzen 7000 series processors.
• Memory: Four DDR5 RAM slots supporting up to 192GB, enhancing multitasking and rendering speeds.

Storage and Expansion

• Storage: Four SATA III and two M.2 PCIe SSD interfaces for faster data transfer.
• Expansion Slots: One PCIe 4.0 x16 and two PCIe 3.0 x1 slots for graphics and utility cards.

Connectivity

• USB Ports: Multiple USB 2.0 ports for low-powered devices, and USB 3.2 Gen 1 and Gen 2 ports for high-speed data transfer.
• Network: 2.5 Gigabit Ethernet port for fast and reliable network connectivity.

Display and Legacy Support

• Video Outputs: HDMI and DisplayPort for processors with integrated graphics.
• Legacy Connectors: VGA and PS/2 for older displays and peripherals.

Cooling Capabilities

• Heat Sinks: M.2 Shield Frozr, heavy-plated VRM heat sink, 7W/mK thermal pad, and chipset heat sink to prevent thermal throttling.
• Fan Control: Fully Fan Control software for automatic or manual fan operation.

User-Friendly Features

DIY Friendly

• Installation Enhancements: Double ESD Protection, Keep Out Zone, EZ Debug LED, Windows 11 Certification, and Driver Utility Installer suite.

Performance

• PCIe 4.0 Technology: Supports data transfer speeds up to 64 Gb/s for M.2 storage and graphics cards.
• Memory Support: Dual-channel DDR5 RAM DIMM slots handle frequencies up to 6000 MHz with EXPO support for various memory brands.

Protection

• Steel Armor PCIe Slot: Extra strength for heavier graphics cards with additional solder points and metal casing.
• Double ESD Protection: Grounding layer around mounting holes to prevent static discharges.
• Windows 11 Certification: Ensures a seamless and worry-free installation.

BIOS and Software

MSI Center

• Software Utilities: Unified application for system modification and monitoring, including Hardware Monitoring, System Diagnosis, Fan Center, User Scenario, True Color, and Profile Setting.
• Mystic Light: Control RGB lighting across your system and peripherals.

Click BIOS 5

• Customization: Adjust motherboard parameters for performance, efficiency, and overclocking capabilities.
• Resizable Bar Technology: Streamlines the connection between GPU and CPU for smoother performance, ideal for gaming and graphically intense programs.

Enhanced Audio

• Audio Processor: High-quality HD audio processor with audio capacitors for clear sound.
• Channel Isolation: Prevents distortion and crosstalk for clearer audio.
• DE-POP Protection: Prevents loud popping sounds when plugging and unplugging headsets.

The MSI PRO B650M-P AM5 Micro-ATX Motherboard is a powerful and versatile choice for high-performance business builds. Its compatibility with AMD Ryzen 7000 series processors, support for DDR5 RAM, extensive connectivity options, robust cooling solutions, and user-friendly features make it an excellent foundation for your next desktop system. The additional features like enhanced audio, Mystic Light RGB control, and comprehensive BIOS and software utilities further enhance its value, ensuring a smooth and efficient computing experience.
