Description

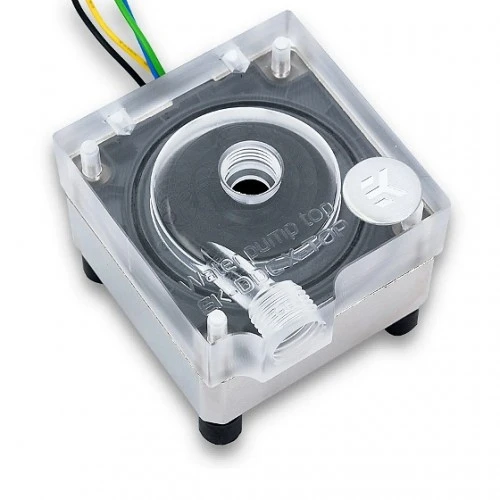

EKWB EK-XTOP DDC 3.2 PWM Elite Plexi
This is equipped with a high-performance water cooling pump, the renowned EK-DDC 3.2 PWM (4-pin PWM fan header). This unit offers up to 15% improved hydraulic performance compared to the original factory top. Its PWM control enables automatic pump speed adjustment based on CPU temperature.
[ez-toc]
Features- EKWB EK-XTOP DDC 3.2 PWM Elite Plexi
Key features of the PWM Elite Plexi include a rated voltage of 12V DC, power consumption of 18W, maximum head pressure of up to 5.2m, maximum flow rate of up to 1000 L/h, and maximum liquid temperature of 60°C. It is constructed from stainless steel, PPS-GF40, EPDM O-rings, aluminum oxide, and hard coal. It has a 4-pin Molex and a 4-pin PWM fan connector. Despite its compact 2.4″ square footprint, the pump delivers an impressive 7m head for superior flow rates in complex liquid-cooled systems.
Additional Features- EKWB EK-XTOP DDC 3.2 PWM Elite Plexi
This industrial-grade pump boasts high reliability and high pressure with a 50,000-hour MTBF (5-year lifetime). The new EK-DDC heatsink housing is made from cast ZAMAK alloy (zinc, aluminum, magnesium, copper) with a nickel-plated finish. It also features a vibration-dampening rubber mounting system to effectively isolate the pump from the computer chassis. The EKWB EK-XTOP DDC 3.2 PWM Elite Plexi comes with a 2-year warranty.
